KEY FEATURES
- 2 channels
- 8 Ohm 2 x 700 W
- 4 Ohm 2 x 1000 W
- 8 Ohm Bridged 1 x 2000 W
- Class H
DESCRIPTION
All models feature XLR thru connectors, making cable management and daisy-chaining easy for installers or when used in flight cases. All models feature full circuitry protection for thermal, over-current, DC, output short circuits along with power on/off muting. All models also feature ultra-quiet variable speed fans.

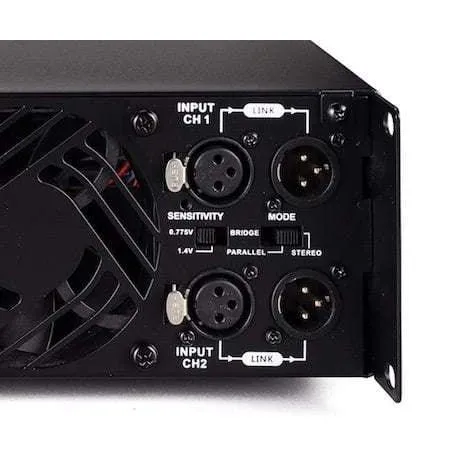

Rear panel mode switches allow for selection between Parallel, Stereo, and Bridge modes along with input sensitivity switching.

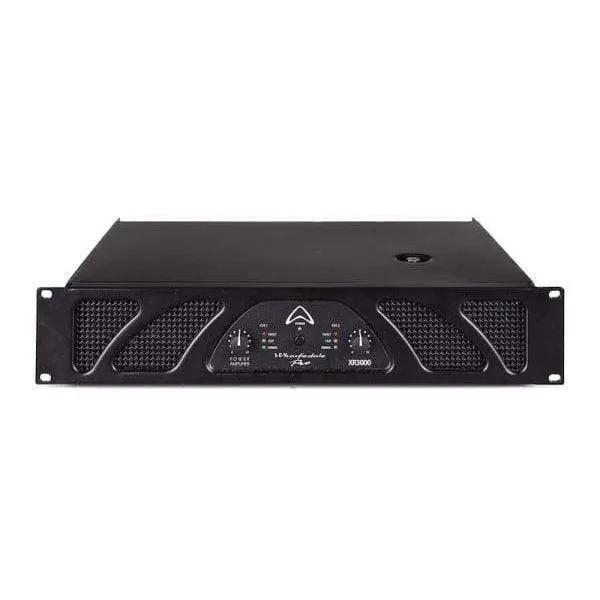

Large front air vents and steel construction aid heat dissipation to ensure the long life and reliable performance that comes with any Wharfedale Pro amplifier. Meanwhile, a huge toroidal transformer takes care of any AC power fluctuations.
SPECIFICATIONS
| Model Name | XR3000 |
| Stereo Power Output : RMS | |
| 8 Ω x 2 | 700 w |
| 4 Ω x 2 | 1000 w |
| Bridged Mono Power Output : RMS | |
| 8 Ω | 2000 w |
| Frequency Response( /-10 dB) | 20 Hz – 20 KHz |
| Topology | Class H |
| Inputs | 2 x XLR |
| Outputs | 2 x NL4 (speakON compatible) |
| 2 x XLR link | |
| Input Sensitivity & impedance | |
| Sensitivity | 0.775 V or 1.4 V |
| Balanced XLR input Impedance | 20 KΩ |
| Maximum Input Level | 22 dBu (9.7 Vrms) |
| Voltage Gain | |
| Slew Rate | >10 V/us |
| Crosstalk | <-75 dB |
| S/N | >100 dB |
| Distortion (1 W) | <0.05% |
| Damping Factor (8 Ω), 10 Hz – 400 Hz | >200 |
| Dimensions | 482 mm x 88 mm x 325 mm |
| Net Weight | 14.1 kg |
| Gross Weight | 17.3 kg |
